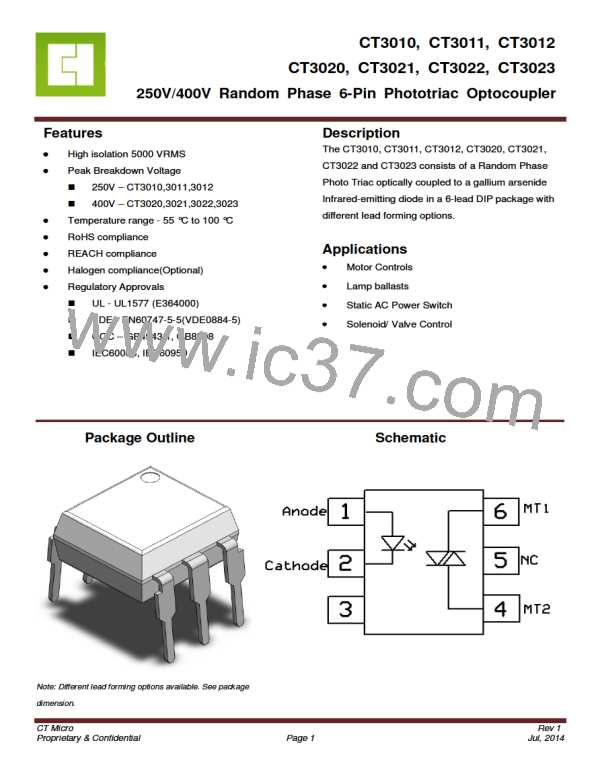

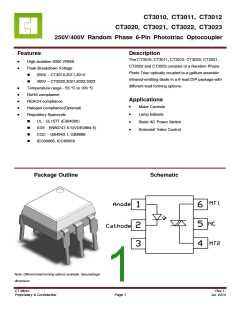

CT3010, CT3011, CT3012
CT3020, CT3021, CT3022, CT3023
250V/400V Random Phase 6-Pin Phototriac Optocoupler
Features
Description
The CT3010, CT3011, CT3012, CT3020, CT3021,
?
?
High isolation 5000 VRMS
Peak Breakdown Voltage
CT3022 and CT3023 consists of a Random Phase
Photo Triac optically coupled to a gallium arsenide
Infrared-emitting diode in a 6-lead DIP package with
different lead forming options.
?
?
250V – CT3010,3011,3012
400V – CT3020,3021,3022,3023
?
?
?
?
?
Temperature range - 55 °C to 100 °C
RoHS compliance
Applications
REACH compliance
?
?
?
?
Motor Controls
Halogen compliance(Optional)
Regulatory Approvals
Lamp ballasts
?
?
?
?
UL - UL1577 (E364000)
Static AC Power Switch
Solenoid/ Valve Control
VDE - EN60747-5-5(VDE0884-5)
CQC – GB4943.1, GB8898
IEC60065, IEC60950
Package Outline
Schematic

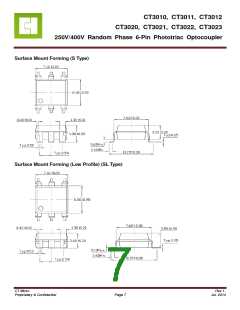

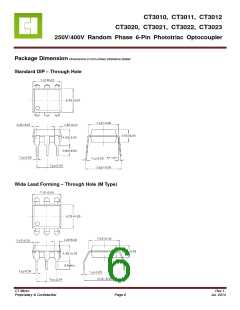

Note: Different lead forming options available. See package
dimension.
CT Micro
Proprietary & Confidential
Rev 1
Jul, 2014
Page 1
