SMV2560A
9939 Via Pasar ? San Diego, CA 92126
TEL (858) 621-2700 FAX (858) 621-2722

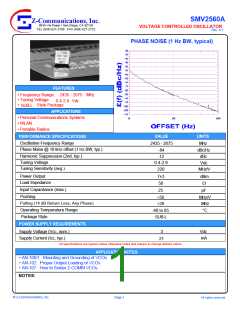

VOLTAGE CONTROLLED OSCILLATOR
Rev A1
PHASE NOISE (1 Hz BW, typical)
FEATURES
-
? Frequency Range: 2435 2675 MHz
? Tuning Voltage:
- Style Package
0.4-2.9 Vdc
?
SUB-L
APPLICATIONS
? Personal Communications Systems
? WLAN
Portable Radios
?
VALUE
UNITS
PERFORMANCE SPECIFICATIONS
Oscillation Frequency Range
Phase Noise @ 10 kHz offset (1 Hz BW, typ.)
Harmonic Suppression (2nd, typ.)
Tuning Voltage
-
2435 2675
MHz
dBc/Hz
dBc
-84
-12
0.4-2.9
220
Vdc
Tuning Sensitivity (avg.)
MHz/V
Power Output
7±3
50
dBm
W
Load Impedance
Input Capacitance (max.)
Pushing
25
pF
<56
MHz/V
MHz
°C
Pulling (14 dB Return Loss, Any Phase)
Operating Temperature Range
Package Style
<29
-40 to 85
SUB-L
POWER SUPPLY REQUIREMENTS
Supply Voltage (Vcc, nom.)
Supply Current (Icc, typ.)
3
Vdc
mA
21
All specifications are typical unless otherwise noted and subject to change without notice.
APPLICATION NOTES
? AN-100/1 : Mounting and Grounding of VCOs
? AN-102 : Proper Output Loading of VCOs
? AN-107 : How to Solder Z-COMM VCOs
NOTES:
? Z-Communications, Inc.
Page 1
All rights reserved
ZCOMM [ Z-COMMUNICATIONS, INC ]
