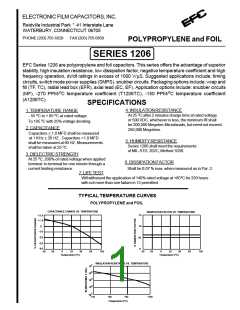

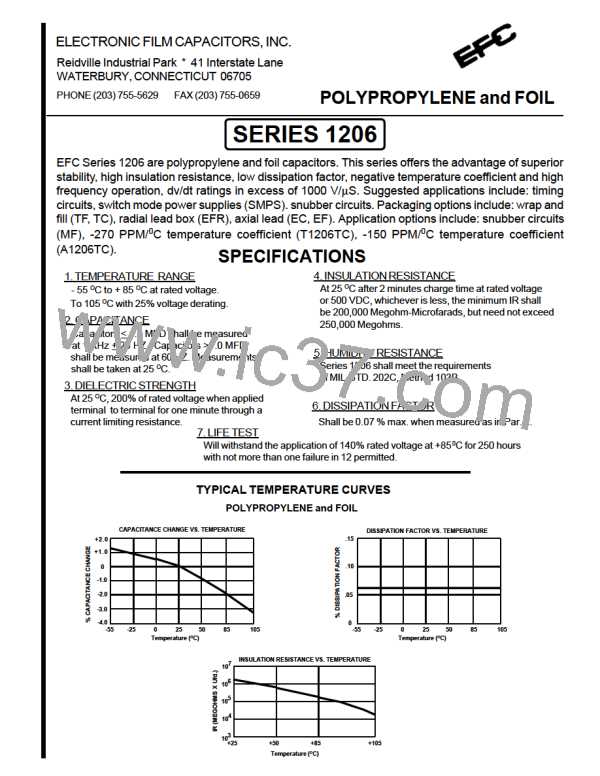

ELECTRONIC FILM CAPACITORS, INC.
Reidville Industrial Park * 41 Interstate Lane
WATERBURY, CONNECTICUT 06705
PHONE (203) 755-5629
FAX (203) 755-0659
POLYPROPYLENE and FOIL
SERIES 1206
EFC Series 1206 are polypropylene and foil capacitors. This series offers the advantage of superior
stability, high insulation resistance, low dissipation factor, negative temperature coefficient and high
frequency operation, dv/dt ratings in excess of 1000 V/μS. Suggested applications include: timing
circuits, switch mode power supplies (SMPS). snubber circuits. Packaging options include: wrap and

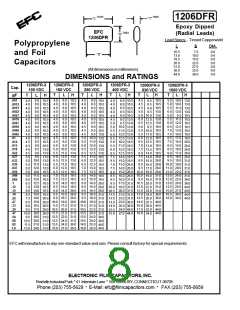

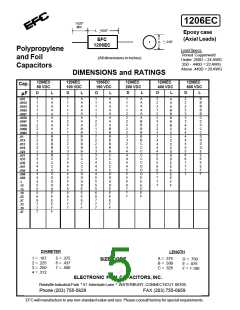

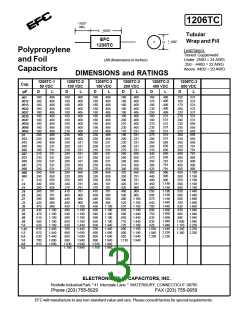

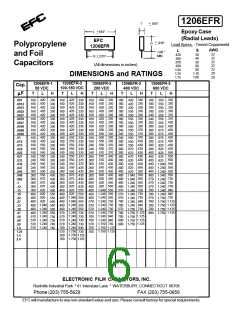

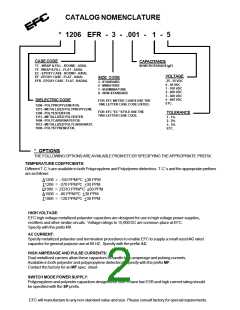

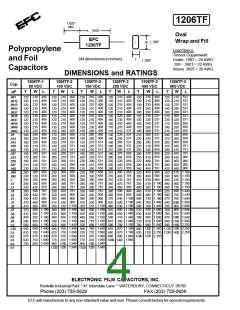

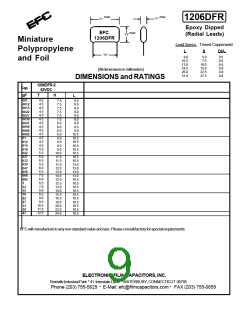

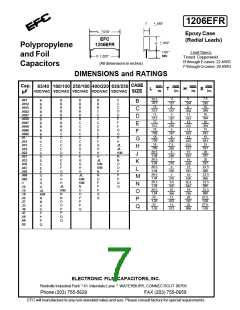

fill (TF, TC), radial lead box (EFR), axial lead (EC, EF). Application options include: snubber circuits
(MF), -270 PPM/0C temperature coefficient (T1206TC), -150 PPM/0C temperature coefficient
(A1206TC).
SPECIFICATIONS
4. INSULATION RESISTANCE
1. TEMPERATURE RANGE
- 55 OC to + 85 OC at rated voltage.
To 105 OC with 25% voltage derating.
At 25 OC after 2 minutes charge time at rated voltage
or 500 VDC, whichever is less, the minimum IR shall
be 200,000 Megohm-Microfarads, but need not exceed
250,000 Megohms.
2. CAPACITANCE
Capacitors < 1.0 MFD shall be measured
_
at 1 KHz + 20 HZ.. Capacitors >1.0 MFD
5. HUMIDITY RESISTANCE
Series 1206 shall meet the requirements
of MIL-STD. 202C, Method 103B.
shall be measured at 60 HZ. Measurements
shall be taken at 25 OC.
3. DIELECTRIC STRENGTH
At 25 OC, 200% of rated voltage when applied
terminal to terminal for one minute through a
current limiting resistance.
6. DISSIPATION FACTOR
Shall be 0.07 % max. when measured as in Par. 2.
7. LIFE TEST
Will withstand the application of 140% rated voltage at +850C for 250 hours
with not more than one failure in 12 permitted.
TYPICAL TEMPERATURE CURVES
POLYPROPYLENE and FOIL
CAPACITANCE CHANGE VS. TEMPERATURE
DISSIPATION FACTOR VS. TEMPERATURE
.15
.10
+2.0
+1.0
0
-1.0
-2.0
.05
0
-3.0
-4.0
-55
-25
0
25
50
85
105
-55
-25
0
25
50
85
105
Temperature (OC)
Temperature (OC)
INSULATION RESISTANCE VS. TEMPERATURE
7
10
6
5
4
10
10
10
3
10
+25
+50
+85
+105
Temperature (OC)
EFC [ Electronic Film Capacitors, Inc. ]
